circuitscaper provides a streamlined R interface for Circuitscape.jl and Omniscape.jl. It allows you to run these high-performance landscape connectivity models entirely from R, while Julia handles the heavy lifting under the hood.
terra raster objects directly.Note: circuitscaper is an independent R package and is not affiliated with the Circuitscape development team. It is a lightweight wrapper to the excellent Julia tools developed by Brad McRae, Viral Shah, Tanmay Mohapatra, Ranjan Anantharaman, and collaborators.
# 1. Install the R package
remotes::install_github("matthewkling/circuitscaper")
# 2. Let the package install Julia and the necessary Julia libraries
library(circuitscaper)
cs_install_julia()library(circuitscaper)
library(terra)
# Load an example resistance raster
resistance <- rast(system.file("extdata/resistance.tif", package = "circuitscaper"))

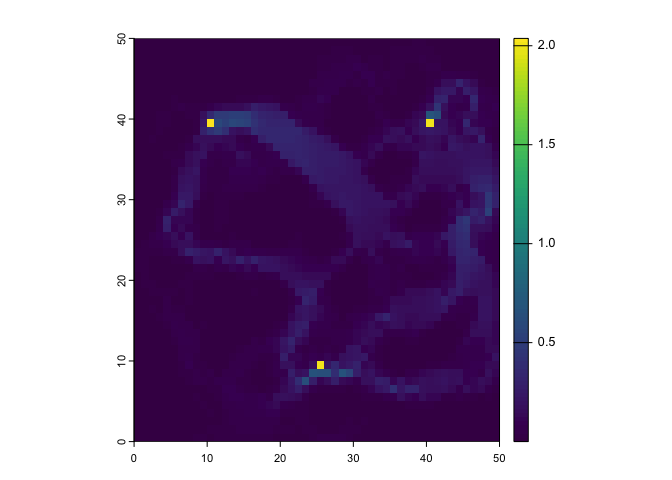

# Pairwise Circuitscape
# (result is a list containing the pairwise resistance matrix and current maps)
focal_sites <- matrix(c(10, 40, 40, 40, 25, 10), ncol = 2, byrow = TRUE)
result <- cs_pairwise(resistance, focal_sites)
plot(result$current_map)

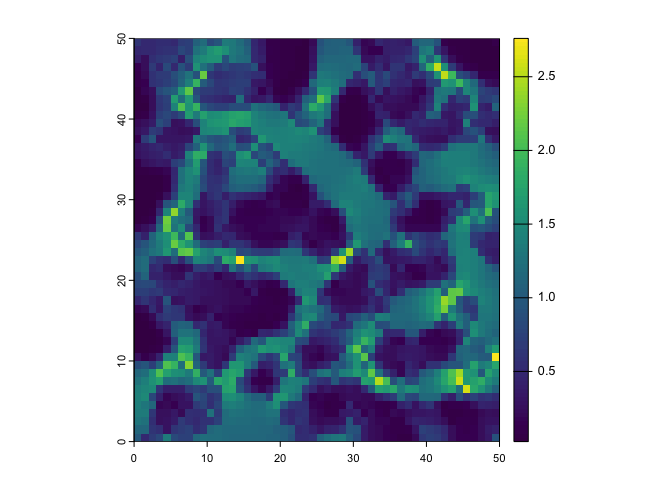

# Omniscape -- wall-to-wall moving-window connectivity
# (result is a multi-layer raster of current flow variables)
result <- os_run(resistance, radius = 10)
plot(result$normalized_current)
| Function | Description | Julia backend |
|---|---|---|
cs_pairwise() |
Pairwise effective resistance and current flow | Circuitscape.compute() |
cs_one_to_all() |
One-to-all connectivity analysis | Circuitscape.compute() |
cs_all_to_one() |
All-to-one connectivity analysis | Circuitscape.compute() |
cs_advanced() |
Advanced mode with custom sources and grounds | Circuitscape.compute() |
os_run() |
Omniscape moving-window connectivity | Omniscape.run_omniscape() |
cs_setup() |
Initialize Julia session (called automatically) | JuliaCall::julia_library() |
cs_install_julia() |
Install Julia and required packages | JuliaCall::install_julia(),
JuliaCall::julia_install_package() |
cs_install_julia())
